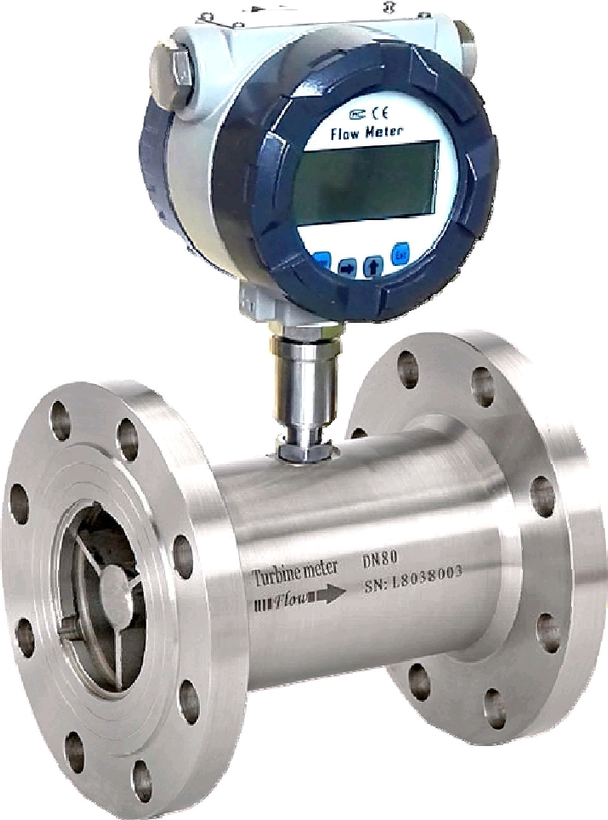

فلومتر توربینی مایعات

فلومتر توربینی برای اندازه گیری سیالات در صنعت طراحی و تولید شده است.

Performance
Repeatability: ±0.2%
Accuracy: Standard: ±1% of reading;
Optional: ±0.5% of reading

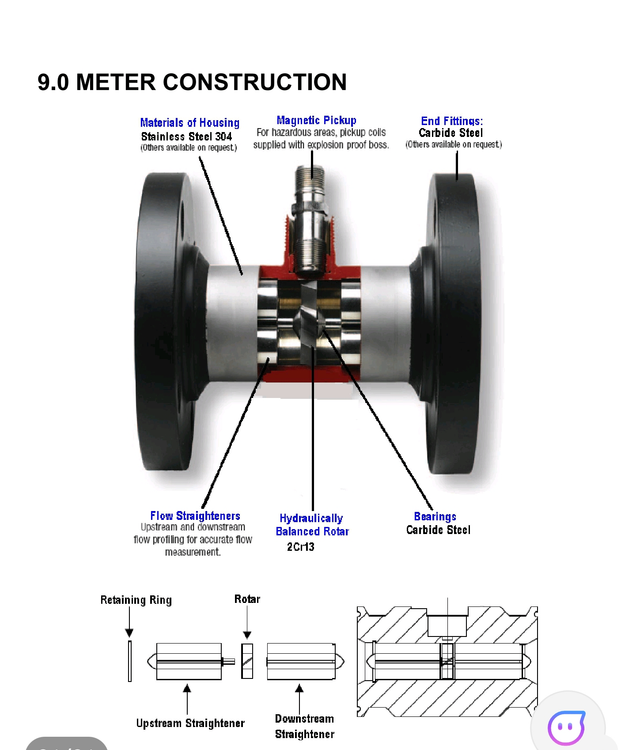

Wetted Components
Housing: Standard - 304 Stainless Steel
Optional - 316 Stainless Steel
Bearings and Shaft: Tungsten Carbide
Rotor: Standard - 2Cr13 Stainless Steel
(Optional Alloy CD4Mcu)
Retaining Rings: 316 Stainless Steel
Output Signal: (Where applicable)
Sensor: Pulse signal (Low Level: ≤0.8V; High Level: ≥8V)
Transmitter: 4 to 20 mA DC current signal
Signal Transmission Distance: ≤1,000 m
Electrical Connections:
Basic Type: Hausman Connector or three-core cable
Explosion Proof Type: ISO M20×1.5 Female
Explosion Proof Level:
Standard: None
Optional: ExdIIBT6
Protection Level: I
